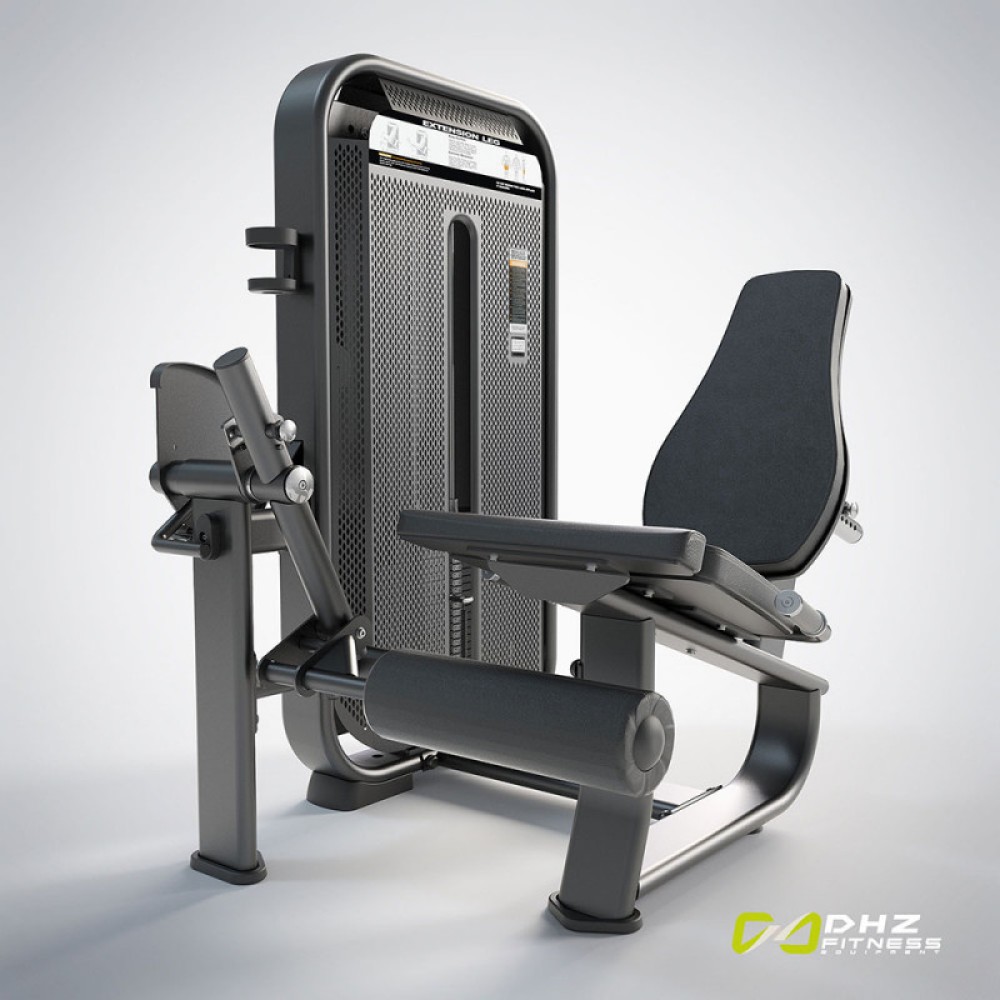

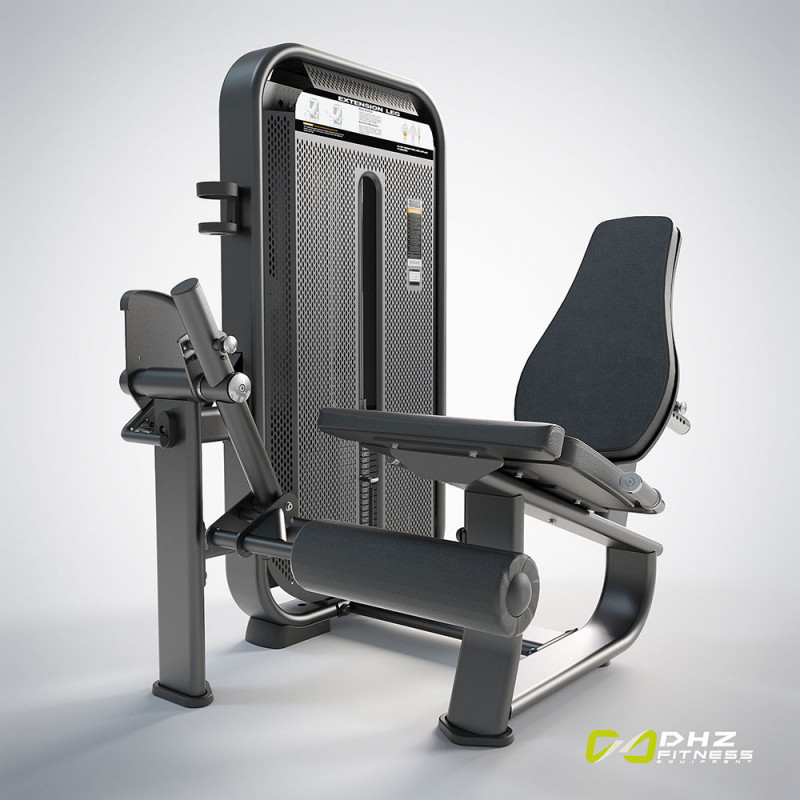

Leg Extension

The Fusion Pro Series Leg Extension is designed to help exercisers focus on the major muscles of the thigh. Angled seat and back pad encourage full quadriceps contraction. A self-adjusting tibia pad provides comfortable support, the adjustable back cushion allows the knees to be easily aligned with the pivot axis to achieve good biomechanics.

E7002 - The Fusion Pro Series Leg Extension is designed to help exercisers focus on the major muscles of the thigh. Angled seat and back pad encourage full quadriceps contraction. A self-adjusting tibia pad provides comfortable support, the adjustable back cushion allows the knees to be easily aligned with the pivot axis to achieve good biomechanics.

Fully Contracted

● The seat is set at the best angle to ensure that the exerciser can fully extend the legs and fully contract the leg muscles

Comfort

● The start position is designed to fit all exercisers and can be easily adjusted. A self-adjusting tibia pad provides comfortable support.

Multi-position Adjustment

● Adjustable back pads allow clients of different sizes to properly align their knee pivots, and multiple starting positions help exercisers choose the optimal motion path length.

Based on the mature manufacturing process and production experience of DHZ Fitness in strength training equipment, the Fusion Pro Series came into being. In addition to inheriting the all-metal design of the Fusion Series, the series has added aluminum alloy components for the first time, combined with one-piece bend flat oval tubes, which greatly improves the structure and durability. The split-type motion arms design allows users to train only one side independently; the upgraded and optimized motion trajectory achieves advanced biomechanics. Because of these, it can be named as Pro Series in DHZ Fitness.

TECHNICAL DATA

• Type No.: E7002

• Size mounted (L x W x H mm): 1425 x 1165 x 1528

• Weight stack (kg): 110

• Weight (kg): 250
